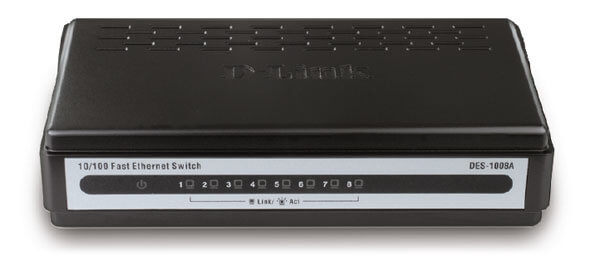

D-Link DES-1008A 8-Port 10/100Mbps Network Switch
Auto-sensing 10/100 ports
The DES-1008A uses auto-sensing 10/100 Mbps ports, allowing a small workgroup to flexibly connect to Ethernet and Fast Ethernet devices to create an integrated network. These ports detect the network speed and auto-negotiate between 10BASE-T and 100BASE-TX, as well as between full and half-duplex, allowing you to get the maximum speed possible for each device connected to your network.
Key Features
Inexpensive Fast Ethernet solution for
Home/SOHO
+ 8 10/100 Mbps Fast Ethernet ports
+ Auto MDI/MDIX crossover for all ports
+ Store-and-forward switching scheme
+ Full/half-duplex for Ethernet/Fast
Ethernet speeds
+ IEEE 802.3x Flow Control
+ Plug-and-play installation
+ RoHS compliant
SWITCHING FABRIC
1.6 Gbps switching fabric
Standards
+ IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
+ IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
+ ANSI/IEEE 802.3 NWay auto-negotiation
+ IEEE 802.3x flow control
Protocol
CSMA/CD
Data Transfer Rates
Ethernet:
+ 10 Mbps (half duplex)
+ 20 Mbps (full duplex)
Fast Ethernet:
+ 100 Mbps (half duplex)
+ 200 Mbps (full duplex)
Topology
Star
Media Interfa ce Exchange
Auto MDI/MDIX adjustment for all ports
Network Cables
10BASE-T:
+ UTP CAT 3/4/5/5e (100 m max.)
+ EIA/TIA-586 100-ohm STP (100 m max.)
100BASE-TX:
+ UTP CAT 5/5e (100 m max.)
+ EIA/TIA-568 100-ohm STP (100 m max.)
LED Indicators
+ Per port: Link/Activity
+ Per device: Power
Transmission Method
Store-and-forward
MAC Address Table
1K entries per device
MAC Address Learning
Automatic update
Packet Filtering/Forwarding Rates
+ Ethernet: 14,880 pps per port
+ Fast Ethernet: 148,800 pps per port
RAM Buffer
57 KBytes per device
Physical & Enviromental
DC Input
External 5V/1A power adapter
Power Consumption
Power On (Standby):
+ DC input: 0.3 watts
+ AC input: 0.5 watts
Maximum:
+ DC input: 1.6 watts
+ AC input: 2.5 watts
Heat Dissipa tion
+ Power On (Standby): AC input: 1.706 BTU/h
+ Maximum: AC input: 8.53 BTU/h
Operating Temperature
0 to 40 ˚C (32 to 104 ˚F)
STORAGE TEMPERATURE
-10 to 70 ˚C (14 to 158 ˚F)
OPERATING HUMIDITY
10% to 90% RH non-condensing
Storage Humidity
5% to 90% RH non-condensing
Dimensions (W x D x H)
128 x 68.5 x 25.4 mm (5.0 x 2.7 x 1.0 inches)
Certifications
+ FCC Class B
+ ICES-003 Class B
+ CE Class B
+ C-Tick Class B
+ cUL
+ LVD
| Product Name | D-Link DES-1008A 8-Port 10/100Mbps Network Switch |
|---|
